Variety of contact mechanism, illumination, circuitry, force, mounting, and termination options
Optional spring return for momentary contact
Customization upon request
Industrial control, telecommunication, home appliance, consumer products, instrument, pro-audio…, etc.
| Series | Features | Rotational Life | Position | Torque | Download | Termination | |
|---|---|---|---|---|---|---|---|
|
Series RSH |
7.2*7.2mm rotary coded switch, SMD and through hole | 10,000 | 4, 10, 16 | 40 ~ 200 gf.cm |
RSH.pdf |
Vertical & Horizontal, SMD & Thru-hole |
|
Series RSF |
10*10mm rotary coded switch, SMD and through hole | 20,000 | 10, 16 | 144 ~ 432 gf.cm |
RSF.pdf |
Vertical, SMD & Thru-hole |
|
Series RAT |
9.2mm diameter, rotary switch, through hole | 2,000 | 2-8 | 350±150 gram |
RAT.pdf |
Vertical, Thru-hole |
|
Series RATL |
9.2mm diameter, rotary switch, through hole, long life | 10,000 | 1-8 | 350±150 gram |
RATL.pdf |
Vertical, Thru-hole |
|

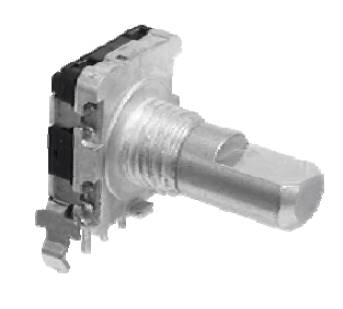

Series SRE11 |
8, 15, 16, 20 PPR Accept 120RPM Momentary switch Excellent detent feel | 15,000 | 8, 15, 16, 20 | 30-200gf.cm |
SRE11.pdf |
Vertical, Horizontal Thru-hole |
|
Series SRE11S |
Slim thickness Accept 120RPM Momentary switch Excellent detent feel | 15,000 | 15 | 100±70gf.cm |
SRE11S.pdf |
Vertical SMD & Thru-hole |
|
Series HRE23 |
23mm diameter Hollow type Slim thickness Excellent detent feel | 50,000 | 10 | 70±40 gf.cm |
HRE23.pdf |
Vertical Thru-hole |
|
Series SRE12D |
12, 24 PPR Accept 120RPM Momentary switch Illumination Excellent detent feel | 30,000 | 12, 24 | 30-200 gf.cm |
SRE12D.pdf |
Vertical, Horizontal Thru-hole |
|
Series SRE12P |
12, 24 PPR Accept 120RPM Momentary switch | 10,000 30,000 | 12, 24 | 30-200 gf.cm |
SRE12P.pdf |
Vertical, horizontal Thru-hole |
|
Series RE15H |
Continuous roation 12-position per revolution Hollow type | 10,000 | 3 | 40 gf.cm max. |
RE15H.pdf |
SMD |
|
Series RE20H |
Continuous rotation 16 or 24 detent Hollow type Graycode | 15,000 | Graycode (Absolute Coding) | 400±100gf.cm |
RE20H.pdf |
Thru-hole |
|

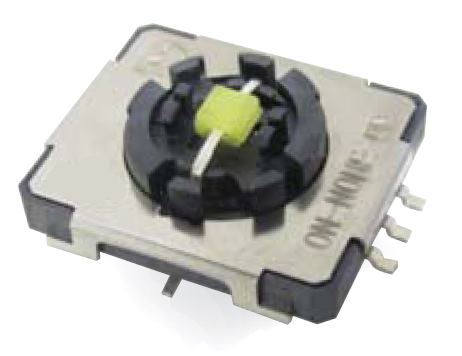

Series MATP |
15*13mm rotary switch, SMD, optional illumination | 10,000 | 3 | 1.3N ± 0.4 N |
MATP.pdf |
Vertical, SMD |
|

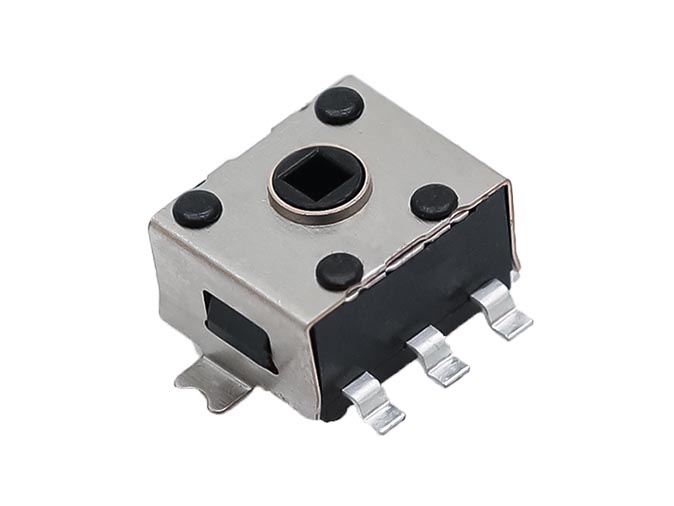

Series RE54A |
4.8*3.9mm 12, 6 PPR Momentary switch | 100,000 | 12 | 100gf.cm |
RE54A.pdf |
SMD |
