Variety of contact mechanism, illumination, circuitry, force, mounting, and termination options
Optional spring return for momentary contact
Customization upon request
Industrial control, telecommunication, home appliance, consumer products, instrument, pro-audio…, etc.
| Series | Features | Life Cycle | Rating | Contact Style | Download | Termination | |
|---|---|---|---|---|---|---|---|
|
Series BSM |
Slide Switch, high power rating, multiple contact arrangement | 30,000 | 5A@120VA, (Typical) | SPDT, DPDT |
BSM.pdf |
Vertical & Horizontal, Solder Lug & Thru-hole |
|

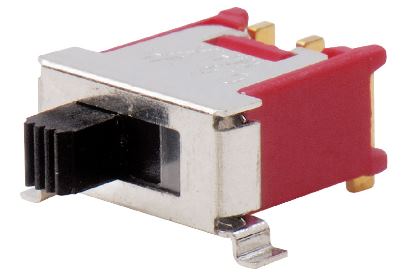

Series BSF |
Subminiature Slide Switch, multiple contact arrangement | 30,000 | 3A@120VAC, (Typical) | SPDT, DPDT |
BSF.pdf |
Vertical & Horizontal, Thru-hole & SMD |
|
Series BSE |
Subminiature Slide Switch, multiple contact arrangement, washable | 40,000 | 0.4A@48VDC | SPDT, DPDT |
BSE.pdf |
Vertical & Horizontal, Thru-hole & SMD |
|
Series SM |
Miniature Slide Switch, multiple contact arrangement | 10,000 | 3A@120VAC, (Typical) | SPDT, DPDT |
SM.pdf |
Vertical; Thru-hole |
|
Series SS1 |
Slim Slide Switch, multiple contact arrangement | 10,000 | 25mA@24VDC | DPDT, SP4T |
SS1.pdf |
Vertical & Horiztonal, SMD |
|
Series SS2 |
Ecomimic Slide Switch, multiple contact arrangement | 10,000 | 0.3A@50VDC | 1P2T, 1P3T, 2P3T |
SS2.pdf |
Vertical & Horizontal, Thru-hole |
|
Series DPB |
DIP SW Box type Top actuation 2.54mm pitch | 3,000 | 25mA, 24VDC | SPST (1-10, 12 position) |
DPB.pdf |
Vertical Thru-hole |
|

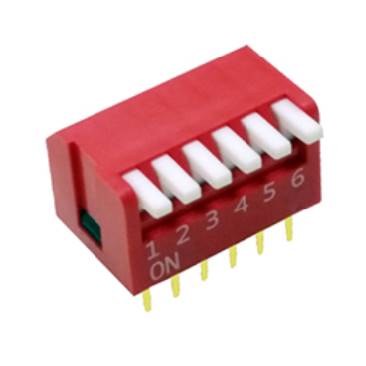

Series DPP |
DIP SW Piano type Side actuation 2.54mm pitch | 3,000 | 25mA, 24VDC | SPST (2-10, 12 position) |
DPP.pdf |
Vertical Thru-hole |
|

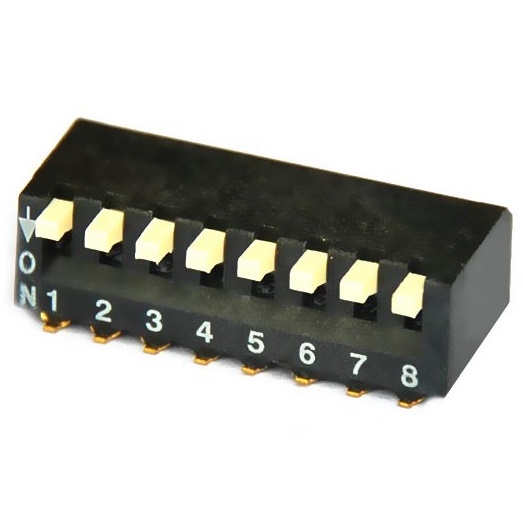

Series DPR |
DIP SW Right angle type Side actuation 2.54mm pitch | 3,000 | 25mA, 24VDC | SPST (1-10, 12 position) |
DPR.pdf |
Right angle Thru-hole |
|
Series DPIS |
DIP SW Low-profile Twin contactor Washable | 2,000 | 25mA, 24VDC | SPST (1-10, 12 position) |
DPIS.pdf |
Gull-wing, J-style SMD |
|
Series DPIT |
DIP SW Low-profile Twin contactor Washable | 2,000 | 25mA, 24VDC | SPST (1-10, 12 position) |
DPIT.pdf |
Auto-insertion, stright-out Thru-hole |
|

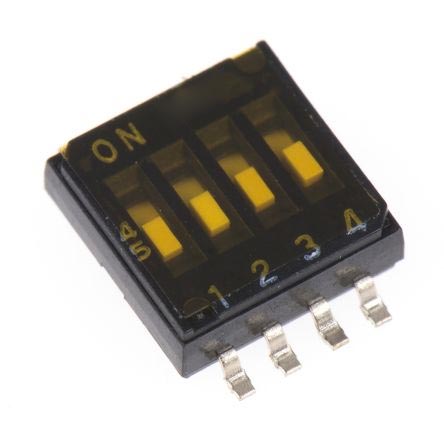

Series DPIH |
DIP SW Ultra Low-profile Half-pitch Twin contactor Washable | 1,000 | 25mA, 24VDC | SPST (2,4,6,8,10 position) |
DPIH.pdf |
Gull-wing SMD |
|
Series DPICH |
DIP SW Low-profile Half-pitch Twin contactor Washable | 1,000 | 25mA, 24VDC | SPST (2,4,6,8,10,12 position) |
DPICH.pdf |
Gull-wing SMD |
|
Series DPIPT |
Dual-in-Line Packaging Switch, side actuated, through hole | 3,000 | 25mA, 24VDC | SPST (2-10, 12 position) |
DPIPT.pdf |
Thru-hole |
|
Series DPIPS |
Dual-in-Line Packaging Switch, side actuated, SMD | 3,000 | 25mA, 24VDC | SPST (2-10, 12 position) |
DPIPS.pdf |
SMD Gull-wing |
