Variety of contact mechanism, illumination, circuitry, force, mounting, and termination options
Optional spring return for momentary contact
Customization upon request
Industrial control, telecommunication, home appliance, consumer products, instrument, pro-audio…, etc.
| Series | Features | Life Cycle | Rating | Contact Style | Download | Termination | |
|---|---|---|---|---|---|---|---|
|

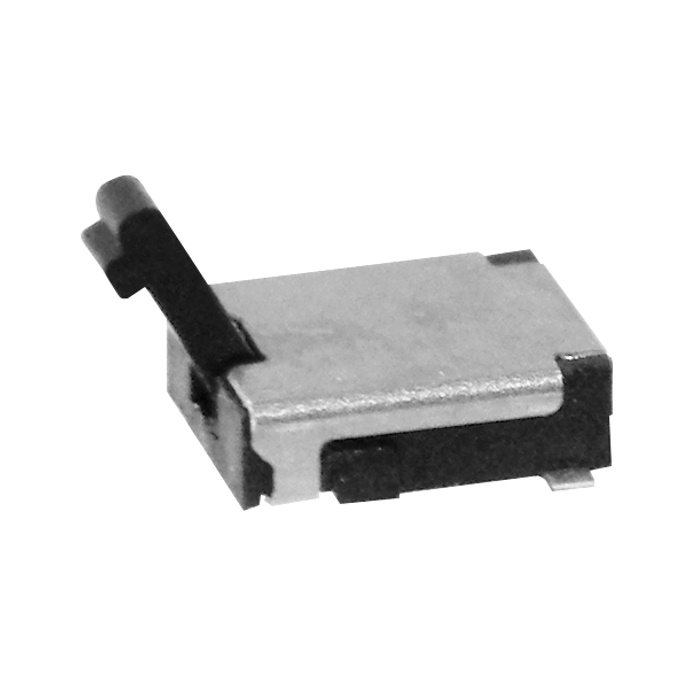

Series DB1 |
13*13mm detector switch, through hole, normal open | 10,000 | 20mA@20VDC | Normal open |
DB1.pdf |
Horizontal, Thru-hole |
|

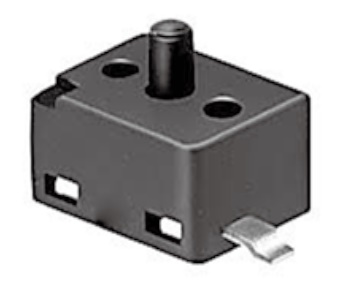

Series DS1 |
4.7*3.5mm detector switch, SMD, normal open | 100,000 | 1mA@5VDC | Normal open |
DS1.pdf |
Vertical, SMD |
|

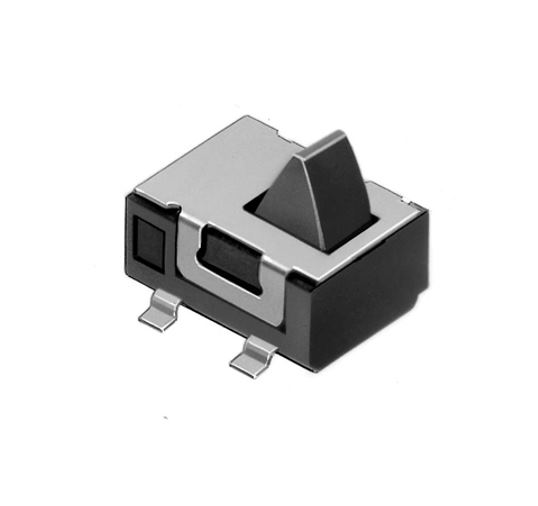

Series DS2 |
5.7*5.0mm detector switch, SMD, normal open | 50,000 | 10mA@5VDC | Normal open |
DS2.pdf |
Horizontal, SMD |
|

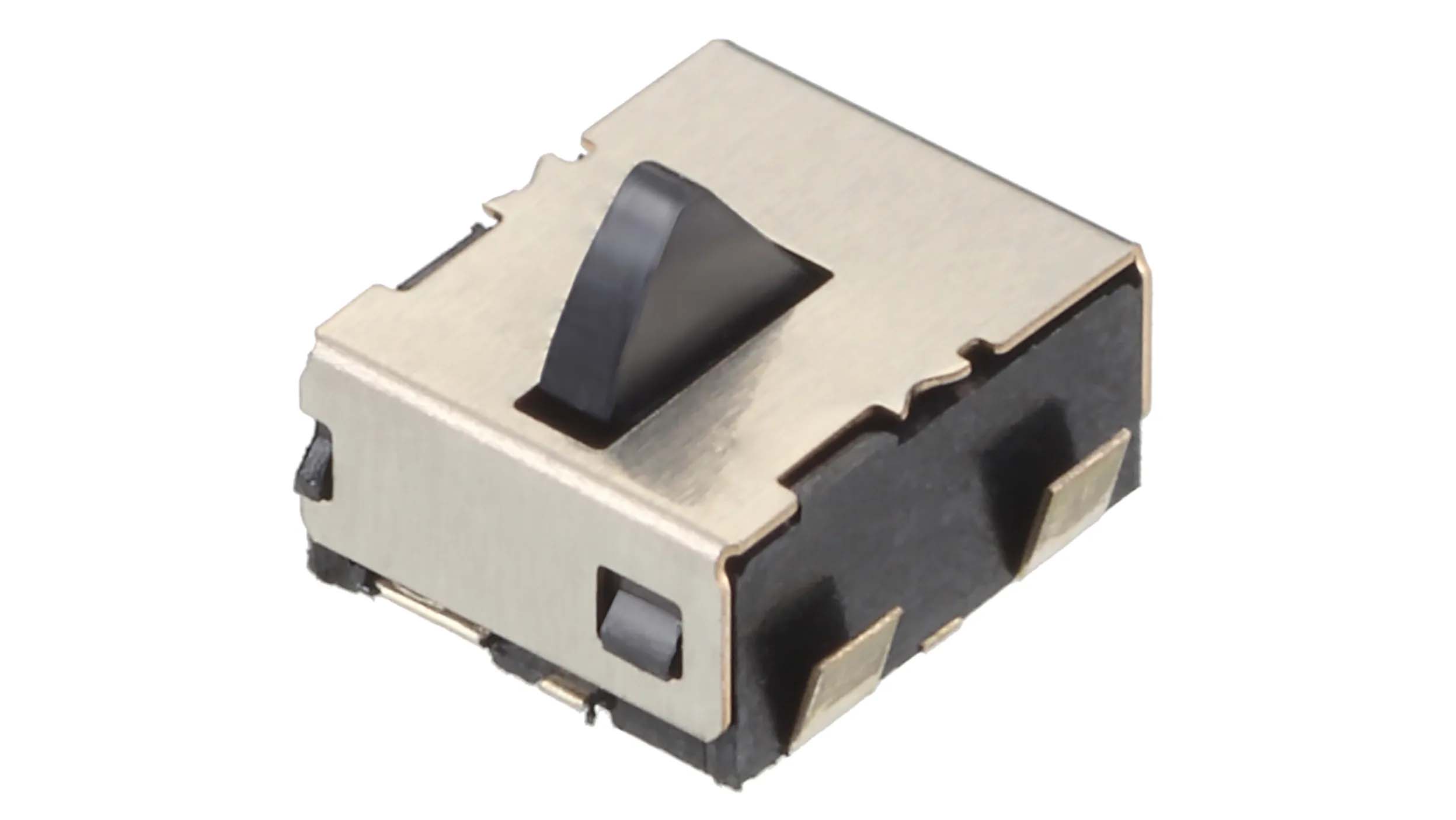

Series DS3 |
8.0*7.0mm detector switch, through hole, normal open | 100,000 | 0.5A@120VAC | Normal open |
DS3.pdf |
Vertical, Thru-hole |
|

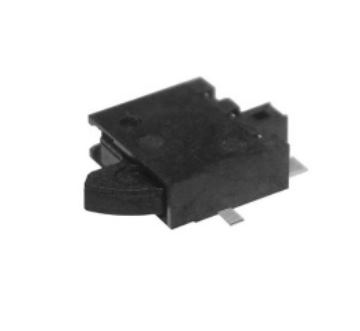

Series DS4 |
8.5*6.0mm detector switch, SMD, normal open | 20,000 | 20mA@5VDC | Normal open |
DS4.pdf |
Vertical, SMD |
|

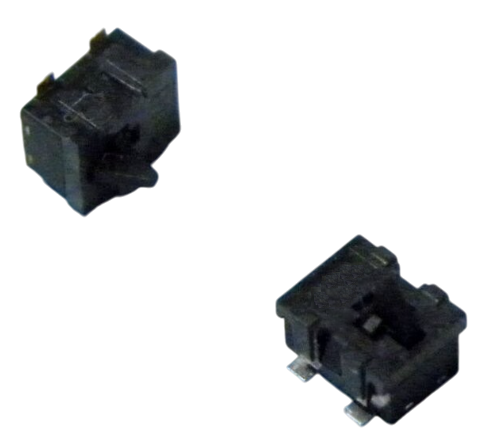

Series DS43A |
3.5*3.0mm detector switch, SMD, vertical | 50,000 | 100mA, 5VDC | Normal open |
DS43A.pdf |
Vertical, SMD |
|

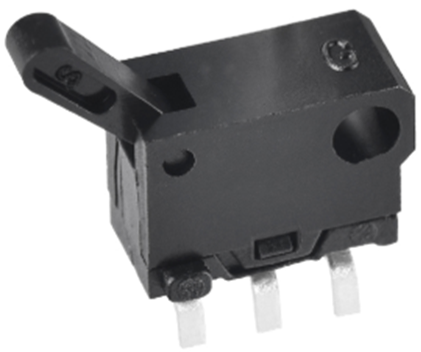

Series DS5 |
3.5*2.8mm detector switch, SMD, normal open | 50,000 | 1mA@5VDC | Normal open |
DS5.pdf |
Vertical, SMD |
|
Series DS6 |
4.2*3.6mm detector switch, SMD, normal close or open | 50,000 | 1mA@5VDC | Normal close Normal open |
DS6.pdf |
Vertical, SMD |
|
Series DS8 |
6.0*4.5mm detector switch, manual soldering, normal close | 100,000 | 5mA@5VDC | Normal close |
DS8.pdf |
Vertical, Manual soldering |
